Form Builder Documentation

User friendly html form builder. A customized Django Wagtail app. Wagtail as a standalone builder for form pages or simply forms.

Work in progress

This documentation is work in progress and certainly not complete. If you have any questions, please contact Thomas Breitner or simply open an issue.

Getting started

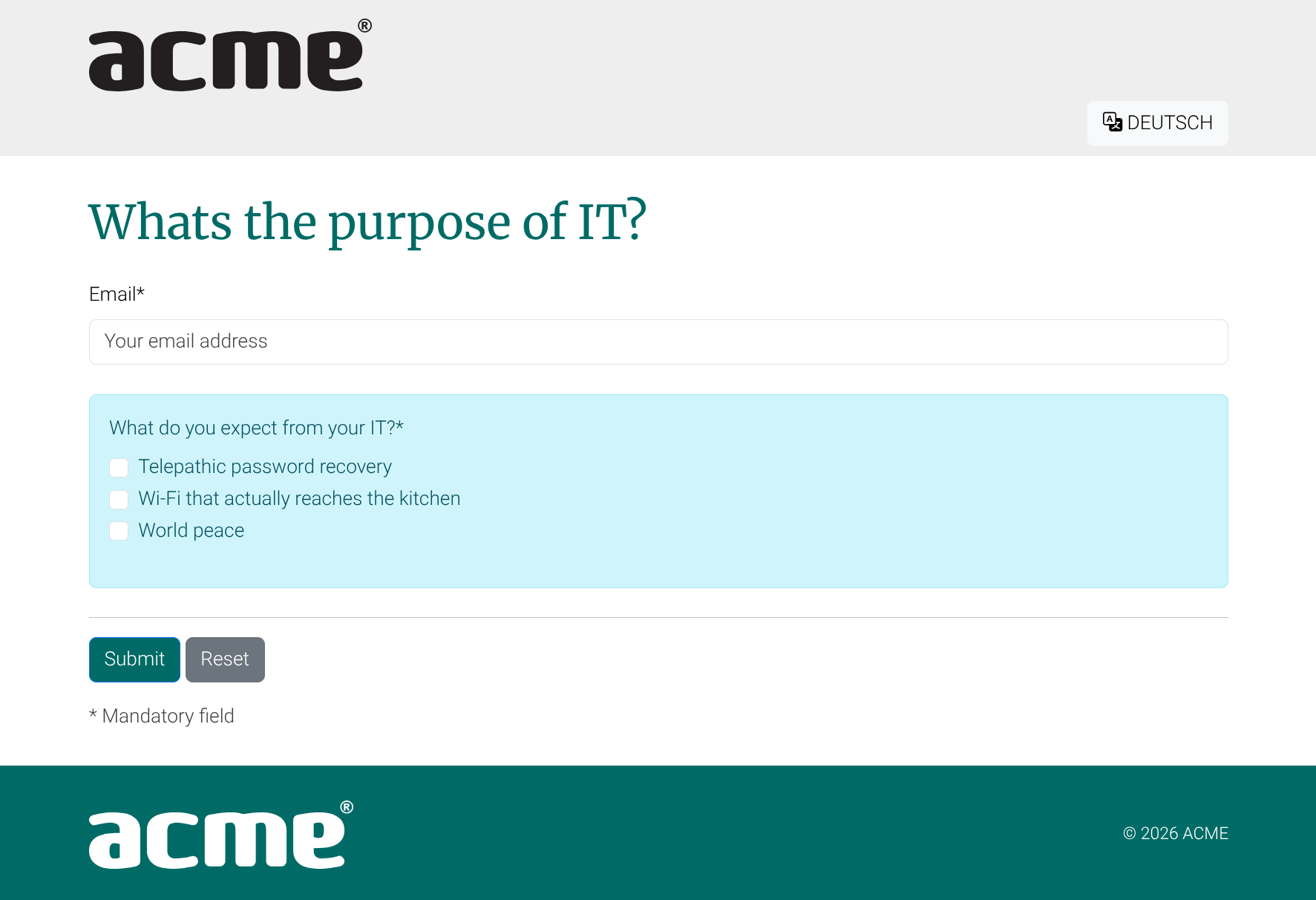

Example public form rendered by the form builder

Features

Building upon the feature set of Wagtail form builder and customized to provide the following additional features.

  • Branding with custom Logos, Favicon, colors etc.

  • Expose API endpoint for forms, authentification via token (optional, configurable per form)

  • Custom form fields:

    • Document file field

    • Image file field

    • Typeahead-Multiselect field (“select2”)

    • Datetime and time fields with time picker for Firefox

  • Embed page content - without header, footer etc. - via url?embed=true. Useful for embedding only the form on third party sites.

    • iFrame autoresizing

    • Handles Content Security Policy (CSP). See .env.

  • Multilingual

  • Captcha (optional, configurable per form)

  • Protect uploaded files (images and documents) via

    • filenames prefixed with an UUID

    • files could only be fetched from an authenticated request, and/or a whitelisted IP address

  • Validates incoming files for:

    • maximum file size

    • file extension

    • file mime type

    • virus scan (via clamav in docker, done async via task queue huey)

iFrame

Embed a form on a third party page. Note the ?embed=true parameter, which strips the navbar and footer, and enables the iFrame autoresizing:

<style>
  iframe[data-waf-resize] {
    width: 1px;
    min-width: 100%;
    border: 0;
  }
</style>
<iframe data-waf-resize src="https://fqdn.com/wagtail/formpage.html?embed=true"></iframe>
<script async src="https://fqdn/static/iframeresizer/iframeResizer.js"></script>

Every iframe carrying the data-waf-resize attribute is picked up automatically, so no inline script is needed. To size an iframe yourself instead, call iframeResize(options, selector) once the script has loaded; the options are documented at https://iframe-resizer.com/api/parent/. The v4 spelling iFrameResize() still works, so existing embeds keep running unchanged.

Autoresizing is provided by iframe-resizer by davidjbradshaw, used under the terms of its GPLv3 open source license. The license key is set on the form page, so embedding sites do not have to configure one.
